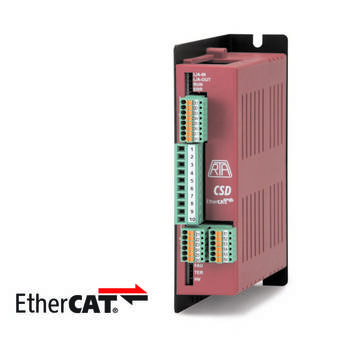

* New series of stepping motor drives with EtherCAT interface.
* Drives optimized for coupling with SANYO DENKI stepping motors, fitted with encoder.
* Compact system, developed to offer a wide variety of integrated functions and optimized for the most demanding motion control applications.
HIGHLIGHTS
* Communication by means of EtherCAT interface.
* Modes of operation: PROFILE POSITION and CSP.
* Full digital microstepping drive.
* Extremely compact size.
* A highly sophisticated operation system, preserving anyhow the traditional ease of use of R.T.A. drives.
* Version: drive housed in a plastic box 130 x 106 x 32 mm, equipped with plug-in connectors.
* Range of operating voltages: 24-48 VDC.
* Nominal current.: 4 Amp.
* Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection.
* Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
* Optoinsulated auxiliary and programmable inputs and outputs.
* UL Recognized.
* Warranty: 24 months.
SETTING BY MEANS OF EtherCAT INTERFACE
* Wide range of motor phase current setting.
* Motor current overboost.
* Intelligent management of the current profile.
* Communication by means of EtherCAT (CoE) interface.
* Modes of operation: PROFILE POSITION and CSP.
* Different variety of HOMING operation modes.
* Encoder feedback.
