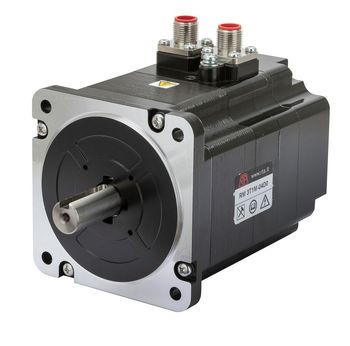

The RM 3T1M-04D0 motor is available with encoder with 400 cpr resolution. (Download PDF for details).
This motor is characterized by flange size 86 mm. with holding torque up to 360 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.
Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.
