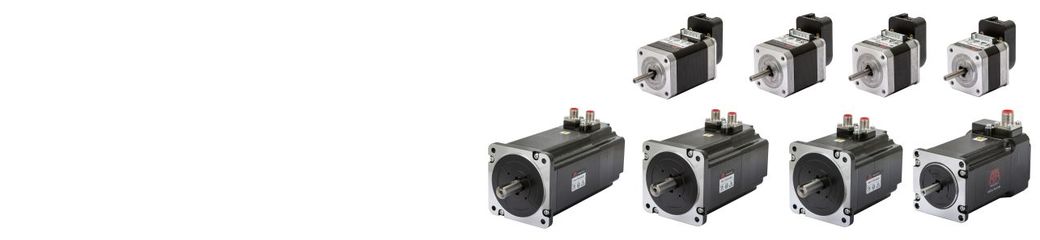

| RH SERIES CON ENCODER | Available Models | Motor holding torque (Ncm.) | Flange Size (mm.) | Length (mm.) | Current (Amp.) | |
|---|---|---|---|---|---|---|
|
RH 1S0M-04D0 | 29 | 42 | 33 | 1.0 | |
| RH 1S0M-04E0 | 29 | 42 | 33 | 1.0 | ||
| RH 1S0M-0HE0 | 29 | 42 | 33 | 1.0 | ||
| RH 1S1M-04D0 | 43 | 42 | 39 | 1.0 | ||
| RH 1S1M-04E0 | 43 | 42 | 39 | 1.0 | ||
| RH 1S1M-0HE0 | 43 | 42 | 39 | 1.0 | ||
| RH 1S2M-04D0 | 56 | 42 | 48 | 1.0 | ||
| RH 1S2M-04E0 | 56 | 42 | 48 | 1.0 | ||
| RH 1S2M-0HE0 | 56 | 42 | 48 | 1.0 | ||
| RH 1S3M-04D0 | 80 | 42 | 59.5 | 1.0 | ||
| RH 1S3M-04E0 | 80 | 42 | 59.5 | 1.0 | ||
| RH 1S3M-0HE0 | 80 | 42 | 59.5 | 1.0 | ||
| RH 2S2M-04D0 | 235 | 56 | 75.8 | 4.0 | ||
| RH 2S2M-04E0 | 235 | 56 | 75.8 | 4.0 | ||
| RH 2S2M-0HE0 | 235 | 56 | 75.8 | 4.0 | ||
| RM SERIES CON ENCODER | Available Models | Motor holding torque (Ncm.) | Flange Size (mm.) | Length (mm.) | Current (Amp.) | |
|
RM 3T1M-04D0 | 360 | 85.5 | 89.5 | 4.0 | |
| RM 3T1M-04E0 | 360 | 85.5 | 89.5 | 4.0 | ||
| RM 3T1M-0HE0 | 360 | 85.5 | 89.5 | 4.0 | ||
| RM 3T2M-04D0 | 700 | 85.5 | 120 | 4.0 | ||
| RM 3T2M-04E0 | 700 | 85.5 | 120 | 4.0 | ||
| RM 3T2M-0HE0 | 700 | 85.5 | 120 | 4.0 | ||
| RM 3T3M-04D0 | 920 | 85.5 | 150 | 4.0 | ||
| RM 3T3M-04E0 | 920 | 85.5 | 150 | 4.0 | ||
| RM 3T3M-0HE0 | 920 | 85.5 | 150 | 4.0 | ||
| RH SERIES ALTA CORRENTE CON ENCODER | Available Models | Motor holding torque (Ncm.) | Flange Size (mm.) | Length (mm.) | Current (Amp.) | |
|
RH 1S3H-04D0 | 80 | 42 | 59.5 | 2.3 | |
| RH 1S3H-04E0 | 80 | 42 | 59.5 | 2.3 | ||
| RH 1S3H-0HE0 | 80 | 42 | 59.5 | 2.3 | ||
