INDUSTRIAL MOTORS WITH ENCODER » RM SERIES WITH ENCODER » STEPPING MOTOR RM 3T3M-04D0

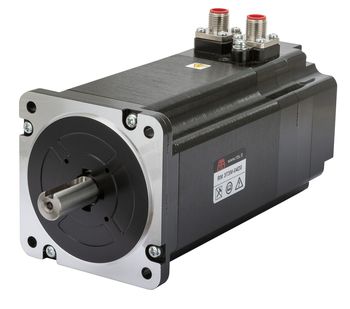

STEPPING MOTOR RM 3T3M-04D0

Flange size 85.5 mm. Nema 34
  X11_sanyo_denki

PRICE

1 pc : 515.10 €

(Exclude vat)

2-5 pcs : 396.20 €

(Exclude vat)
FOR 5+ PCS, PLEASE CONTACT R.T.A. FOR A
SPECIAL QUOTATION

Quantity:

Availability: Available



INTRODUCTION

RM 3T3M-04D0 motor is available with encoder with 400 cpr resolution. (Download PDF for details).

This motor is characterized by flange size 86 mm. with holding torque up to 920 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.

Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.

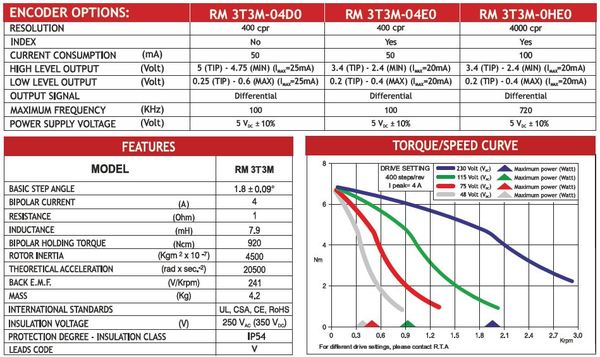

TECHNICAL SPECIFICATIONS

600x_785948_cattura_rm_3t3m-0xx0
