TRADITIONAL MOTORS CON ENCODER » TAMAÑO 3.4" - BRIDA 85.5 mm » MOTORE CON ENCODER EM 3F1H-04D0

MOTORE CON ENCODER EM 3F1H-04D0

Motore Paso a Paso con Brida 85.5 mm. Nema 34

PRECIO

1 unid. : 220.40 €

( Sin IVA)

2-5 uds. : 186.40 €

( Sin IVA)
PARA 5+ PIEZAS, CONTACTE CON R.T.A. PARA UNA
COTIZACIÓN ESPECIAL

Cantidad:

Disponibilidad: Disponible


Otros Modelos TAMAÑO 3.4" - BRIDA 85.5 mm disponibles:


INTRODUCCIÓN

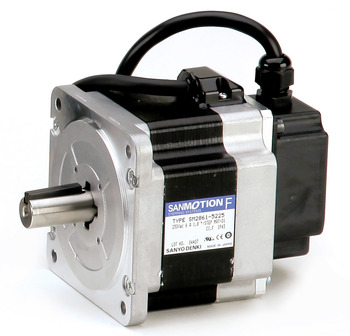

The stepping motor with encoder EM 3F1H-04D0 is characterized by SANYO DENKI stepping motor SM 2861-5225 flange size 85.5 mm. ( NEMA 34 ) with holding torque up to 360 Ncm and Encoder with standard signal: DIFFERENTIAL with a resolution of 400 CPR.


ESPECIFICACIONES TÉCNICAS


Stepping motor with encoder R.T.A. main features:

  • Standard signal: DIFFERENTIAL
  • Standard encoder resolution: 400 CPR
  • High torque Stepping motors guarantees a torque/dimensions ratio of absolute value
  • High flexibility in coupling with R.T.A. drives
  • All motors with encoder are mounted and tested by R.T.A.

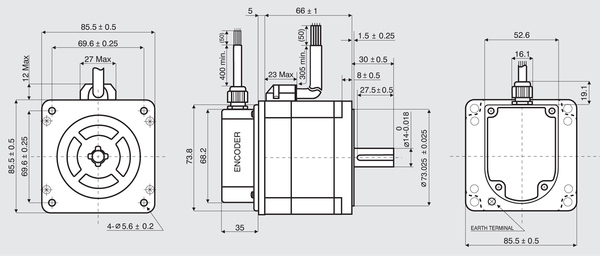

  • 600x_451137_429962_429959_scheda-tecn-3f1h
