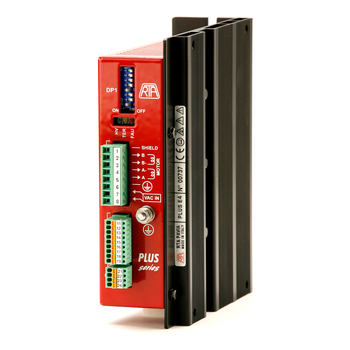

PLUS E4 model is based on a boxed hardware (152 x 129 x 46 mm) and is equipped with plug-in connectors, separated for power and logic sections. It is able to drive motors up to 6 Amps and it is the perfect choice for mid power applications needing an AC power input and a motor loss of synchronism control function.
► Stepping motor drives series with Step & Direction interface suitable for driving two-phase stepping motors, with four, six or eight terminals .
► Optimized for driving R.T.A. EM series stepping motors with encoder (86 mm and 60 mm flange sizes).
► Target: applications requiring EM stepping motors. Control in a standard way (“OPEN LOOP”) but also give an alarm in case of loss of synchronism (“CLOSED LOOP”).
► Version: drive housed in a metallic box 152 x 129 x 46 mm, equipped with plug-in connectors.
► Range of operating voltages: 55 - 100 VAC.
► Range of current: 1.9 - 6.0 Amp. Setting up to eight possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600, 3.200 and 500, 1.000, 2.000, 4.000 steps /revolution. Setting by means of dip-switches.
► Automatic current reduction at motor standstill.
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overheating protection with thermal sensor.
► High efficiency CHOPPER with MOSFET final stage output.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction at low and medium speed
► Alarm memory by use of yellow blinking led.
► Warranty: 24 months.
