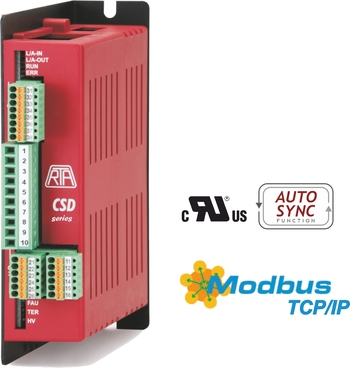

* New series of R.T.A. with Modbus TCP/IP communication system.
* Drives optimized for coupling to SANYO DENKI stepper motors with feedback via encoder.
* Compact system, featuring a full range of built-in features and optimized for the most demanding motion control applications.
HIGHLIGHTS
* Operation with Modbus TCP/IP protocol.
* Modes of operation: PP, PV and HOMING.
* Full digital microstepping drive.
* Extremely compact size.
* Highly evolved control system, however capable of preserving the traditional simplicity of use of R.T.A drives
* Version: in plastic box, format 130 x 106 x 32 mm, equipped with removable screw connectors.
* Supply voltage range: 24-48 VDC.
* Nominal current: 4 Amp.
* Protections:
- Minimum and maximum voltage protection.
- Protection against short circuit at the motor outputs.
-Thermal protection.
* Advanced damping system for maximum noise and vibration control.
* Configurable opto-isolated auxiliary inputs and outputs.
* UL Recognized.
* Warranty: 24 months.
SETTINGS VIA Modbus INTERFACE
* Wide range of possible motor phase current values.
* Motor current overboost.
* Intelligent management of the current profile.
* Modes of operation: PP, PV and HOMING.
* Encoder management.* Version: in plastic box, format 130 x 106 x 32 mm, equipped with removable screw connectors.
* Supply voltage range: 24-48 VDC.
* Nominal current: 4 Amp.
* Protections:
- Minimum and maximum voltage protection.
- Protection against short circuit at the motor outputs.
-Thermal protection.
* Advanced damping system for maximum noise and vibration control.
* Configurable opto-isolated auxiliary inputs and outputs.
* Warranty: 24 months.
SETTINGS VIA Modbus INTERFACE
* Wide range of possible motor phase current values.
* Motor current overboost.
* Intelligent management of the current profile.
* Different modes of HOMING.
* Encoder management.
